High Speed Transmission

Yokowo offers a high-speed data transmission standard connector, which is equivalent to USB3.1 (10Gbps)
For a custom design that requires a different shape, configuration, or material;
We can suggest the best pin design/configuration through our electromagnetic field analysis tool, which we own, that can simulate the behavior of electromagnetic waves.
We also conduct Signal Integrity using actual samples for real world results.

High Speed Transmission
Application Example
Application Example

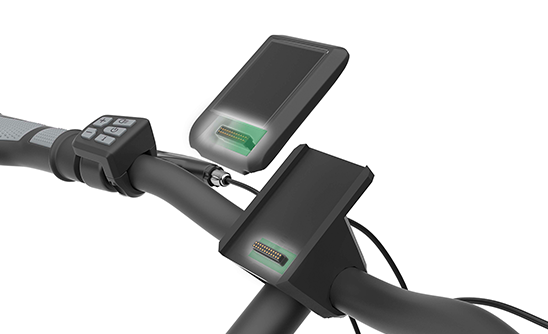

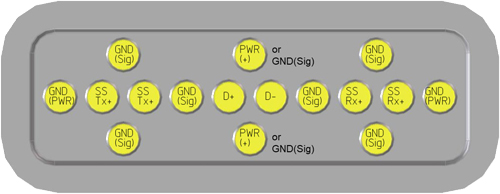

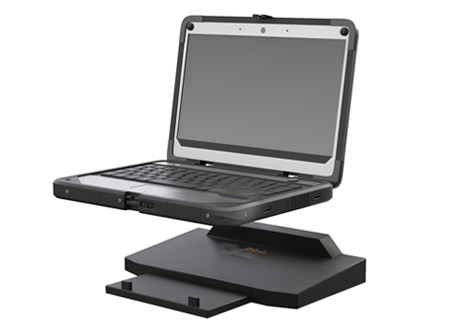

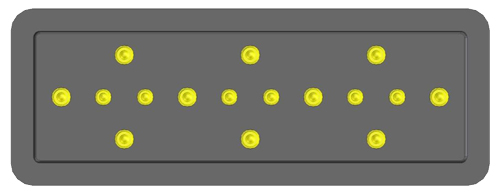

Example of a proposed pin assingment and results of an electromagnetic field alaysis

  • Example of a proposed pin assingment and results of an electromagnetic field alaysis
  • Example of a proposed pin assingment and results of an electromagnetic field alaysis

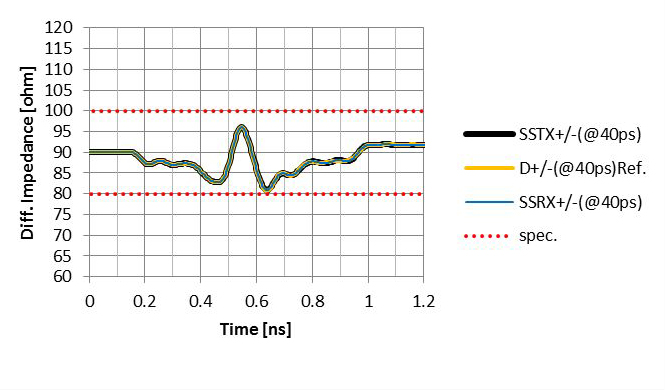

  • Diff. Impedance @40ps(20-80%)Diff. Impedance @40ps(20-80%)

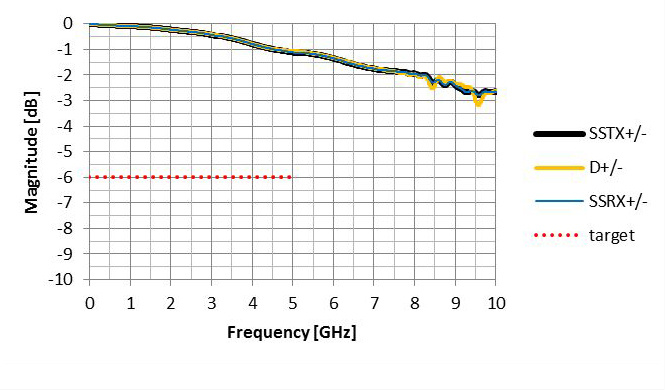

  • Insertion LossInsertion Loss

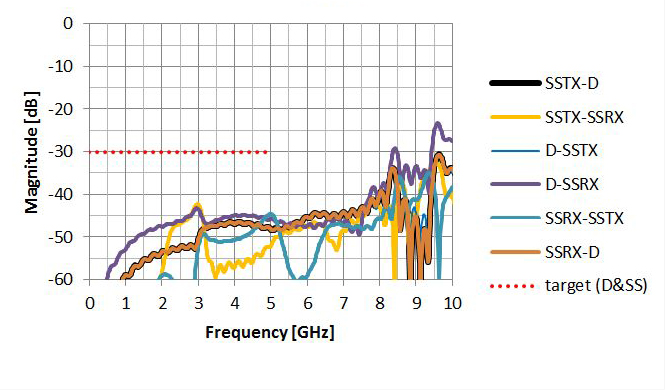

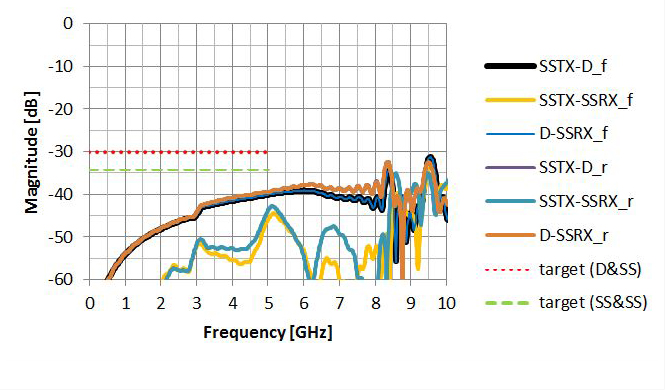

  • Differential To Common Mode ConversionDifferential To Common Mode Conversion

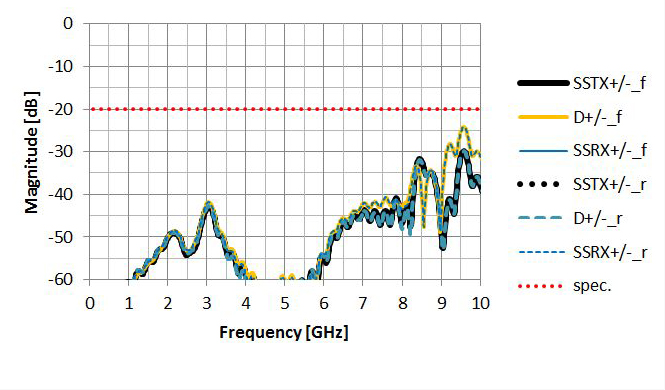

  • NEXTNEXT
  • FEXTFEXT

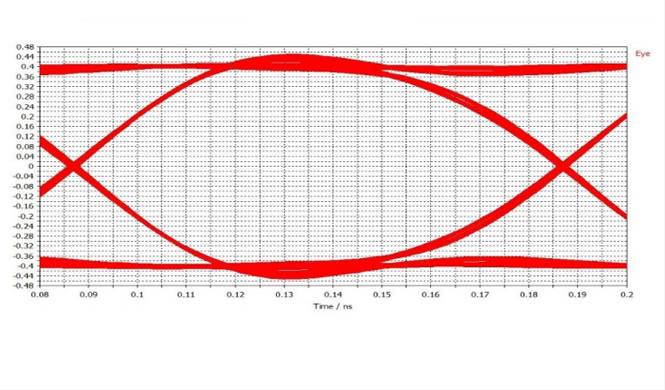

  • Eye Diagram 【Actual product】Eye Diagram 【Actual product】

Ref. SI(Signal Integrity)

Ref. SI(Signal Integrity)

We offer as standard products as well as custom products.

We offer as standard products as well as custom products.

Catalog Line-up
SPRING CONNECTOR™ (Pogo Pin Connectors)

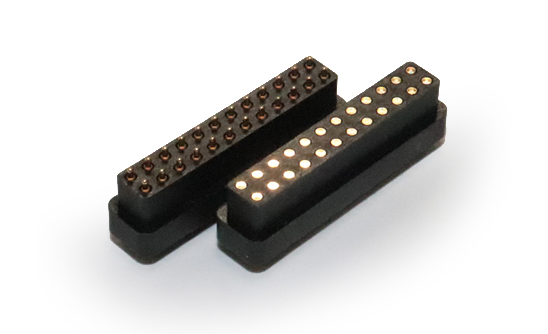

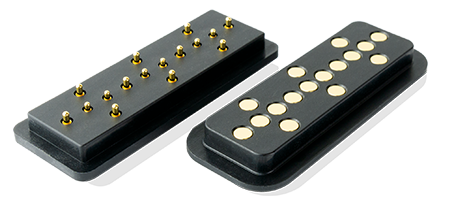

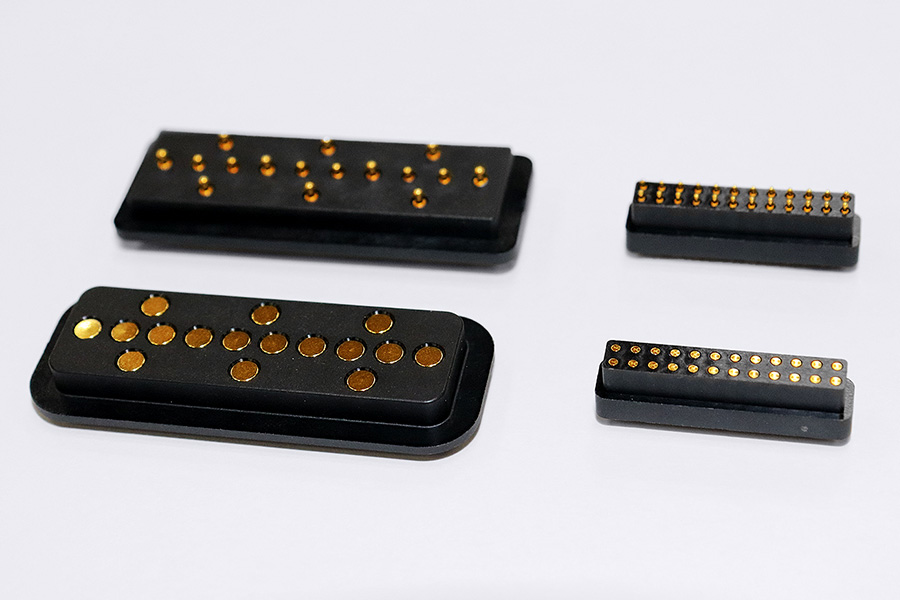

S-J-6717XG-16-375-0000*16Pin/Equivalent to USB3.1(Gen2)/IPX7
Mating Pad
S-J-2600XG-16-375-0000*16Pin/Equivalent to USB3.1(Gen2)/IPX7

Search High Speed Transmission Connectors
