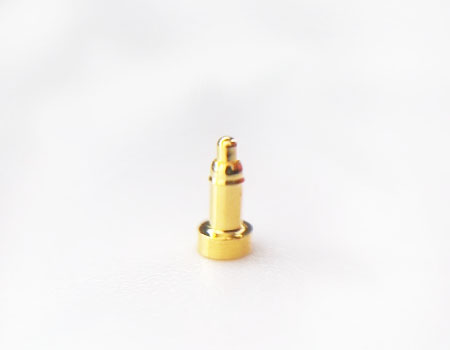

Product image

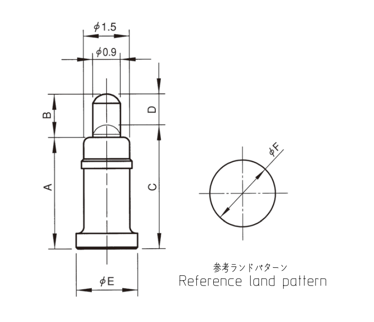

| Technology | High Durability | A | 7 |
|---|---|---|---|
| B | 2.5 | C | 7.8 |
| D | 1.7 | E | 2.5 |
| F | 3.1 | Working Height | 7.8 m |
| Working Range(Reference) | 7.1~8.25 mm | Plug/Rece(Male/Female) | Male |
| Boss | W/O | Number of Pins | 1 |
| Spring Force | 1.0N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 100,000 times |
| Soldering Method | SMD_Vertical | CAP | W/O |
| Packaging | Tape&Reel | Packaging Quantity | 400pcs |
Note

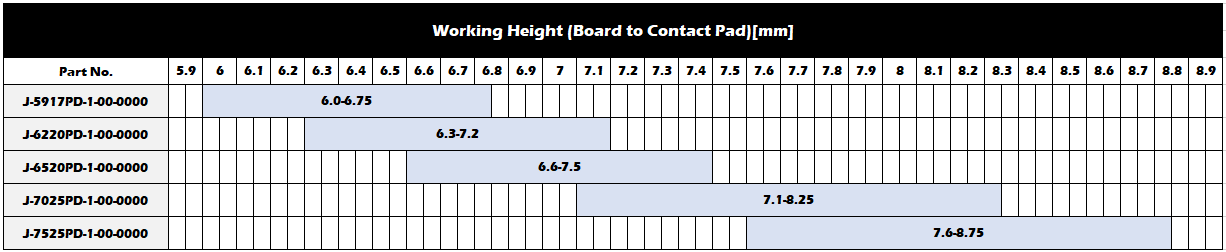

Working Range(Reference)
