J-4614PD-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

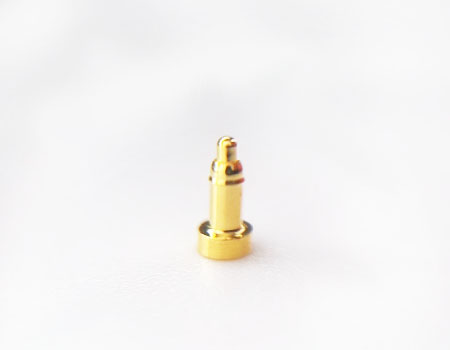

J-4614PD-1-00-0000Product image

RUGGED 100K CYCLES HIGH DURABILITY SPRING CONNECTOR™

J-4614PD-1-00-0000

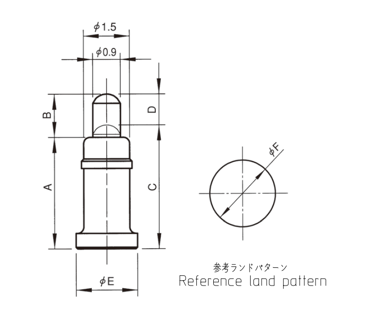

TechnologyHigh DurabilityA4.6
B1.4C5
D1E2.5
F3.1Working Height5.0 m
Working Range(Reference)4.7~5.3 mmPlug/Rece(Male/Female)Male
BossW/ONumber of Pins1
Spring Force1.0NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability100,000 times
Soldering MethodSMD_VerticalCAPW/O
PackagingTape&ReelPackaging Quantity1,000pcs
Note

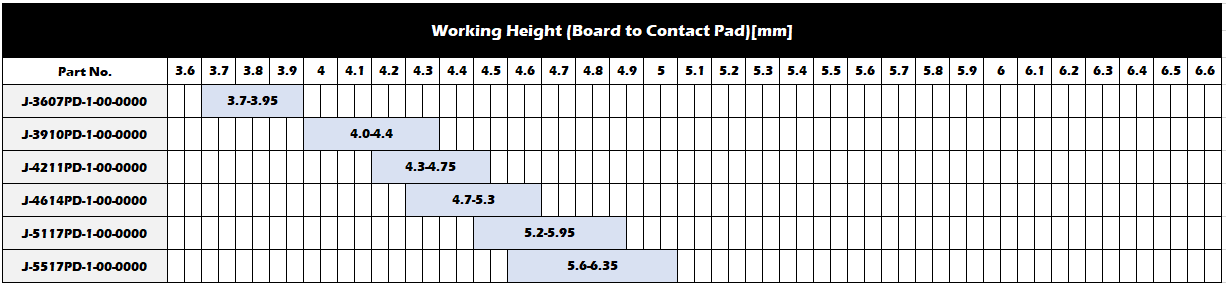

Working Range(Reference)

Working Range(Reference)
