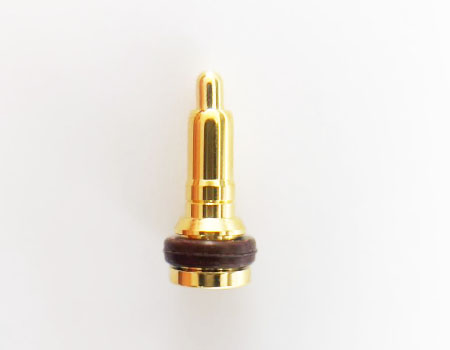

Product image
| Technology | Water Proof | A | 4.5 |
|---|---|---|---|
| B | 1.2 | C | 4.8 |
| D | 0.9 | Working Height | 4.8 mm |
| Working Range(Reference) | 4.6~5.1 mm | Plug/Rece(Male/Female) | Male |
| Boss | W/O | Number of Pins | 1 |
| Spring Force | 0.8N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | Floating | CAP | W/O |
| Packaging | Plastic Bag | Packaging Quantity | 5,000pcs |
Note
Shape to be used only as a reference and may be subject to change.

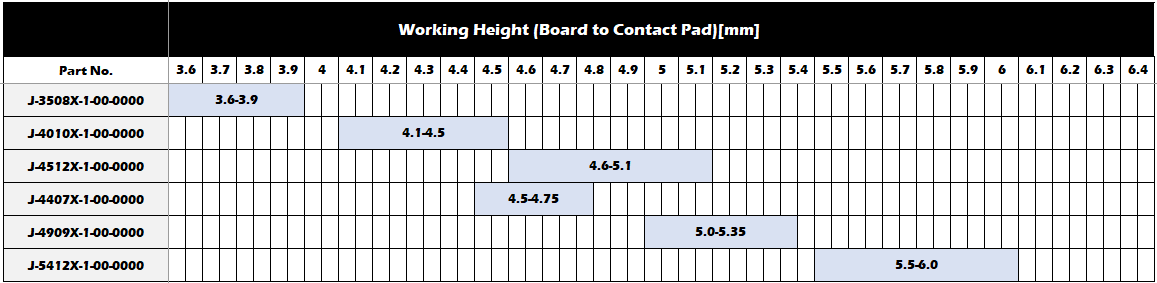

Working Range(Reference)
