Product image
| Technology | N/A | A | 3.6 |
|---|---|---|---|
| B | 1.4 | C | 4 |
| D | 1 | E | 2 |
| F | 2.6 | Working Height | 4.0 mm |
| Working Range(Reference) | 3.7〜4.3 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 0.3 N | Rated Current | 0.5A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 200mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 1,000pcs |
Note
Shape to be used only as a reference and may be subject to change.

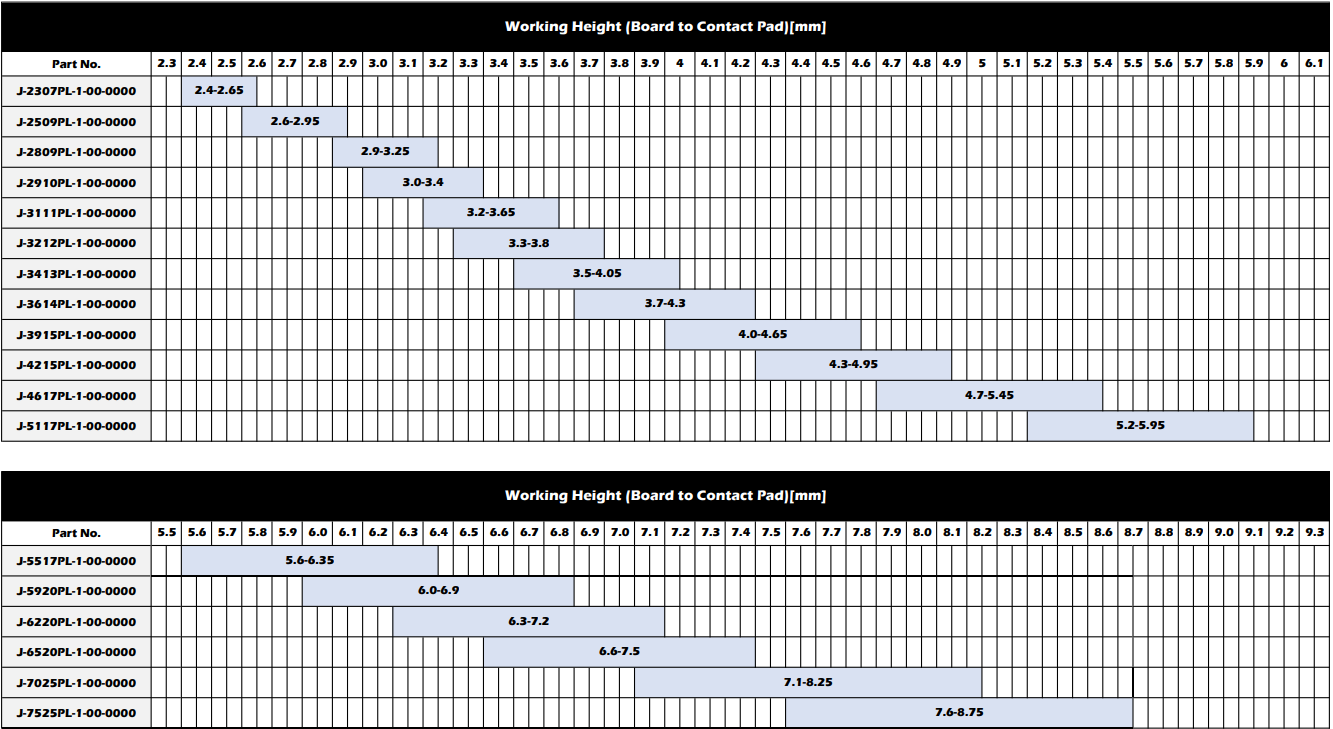

Working Range(Reference)
