T-6520P-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

T-6520P-1-00-0000Product image

Pogo Pin Connectors_1Pin_Thin Plating Series

T-6520P-1-00-0000

TechnologyN/AA6.5
B2C7.2
D1.3E2.5
F3.1Working Height7.2 mm
Working Range(Reference)6.6〜7.5 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08 NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity400pcs
Note

Thin Plating Series

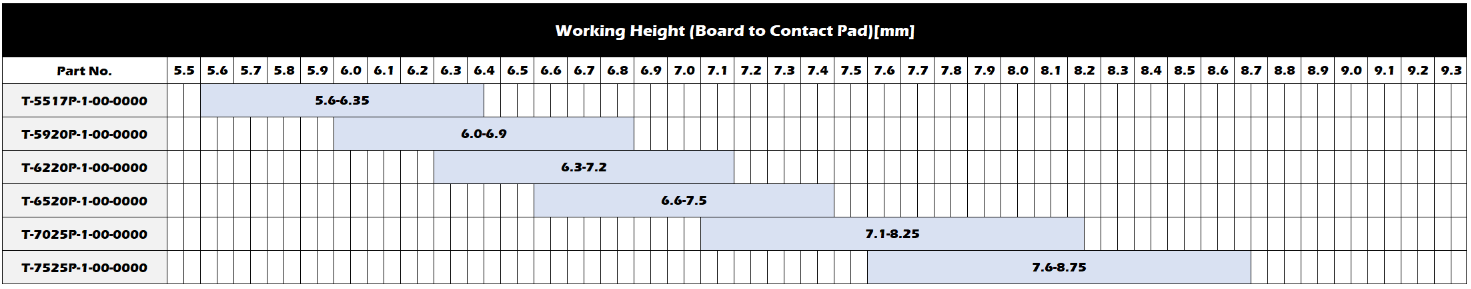

Working Range(Reference)

Working Range(Reference)
