T-3614P-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

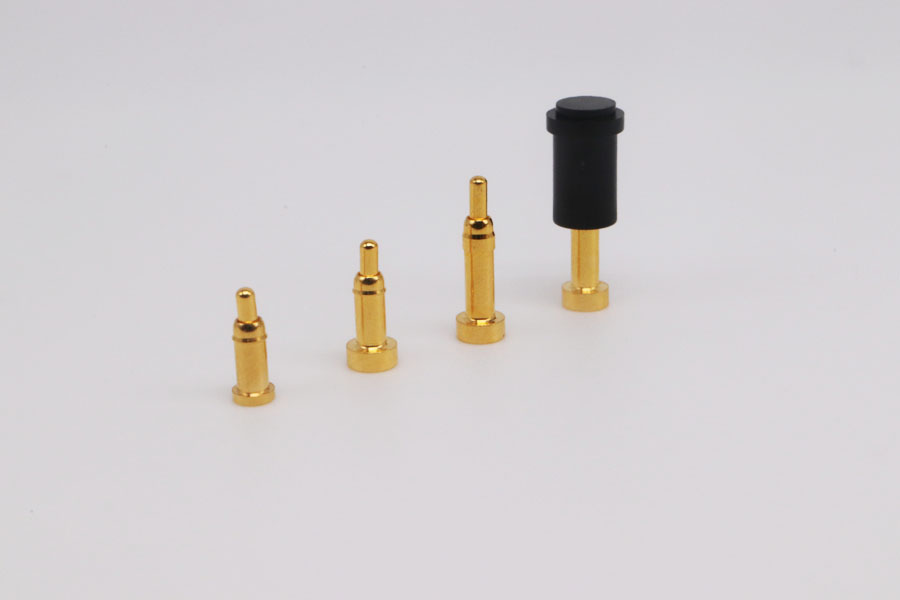

T-3614P-1-00-0000Product image

Pogo Pin Connectors_1Pin_Thin Plating Series

T-3614P-1-00-0000

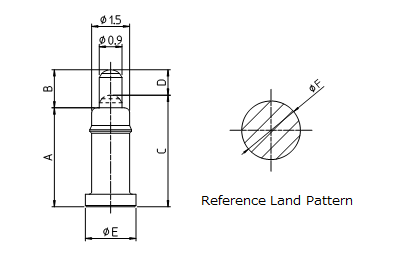

TechnologyN/AA3.6
B1.4C4
D1E2
F2.6Working Height4.0 mm
Working Range(Reference)3.7〜4.3 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08 NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Thin Plating Series

Working Range(Reference)

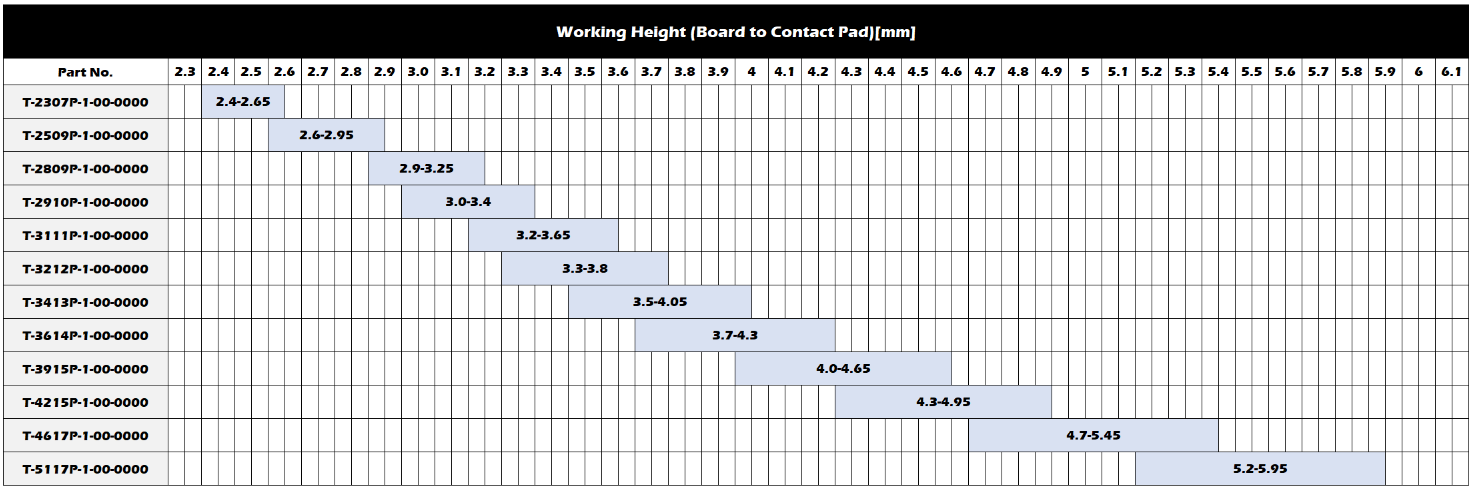

Working Range(Reference)
