T-3111P-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

T-3111P-1-00-0000Product image

Pogo Pin Connectors_1Pin_Thin Plating Series

T-3111P-1-00-0000

TechnologyN/AA3.1
B1.1C3.4
D0.8E1.8
F2.4Working Height3.4 mm

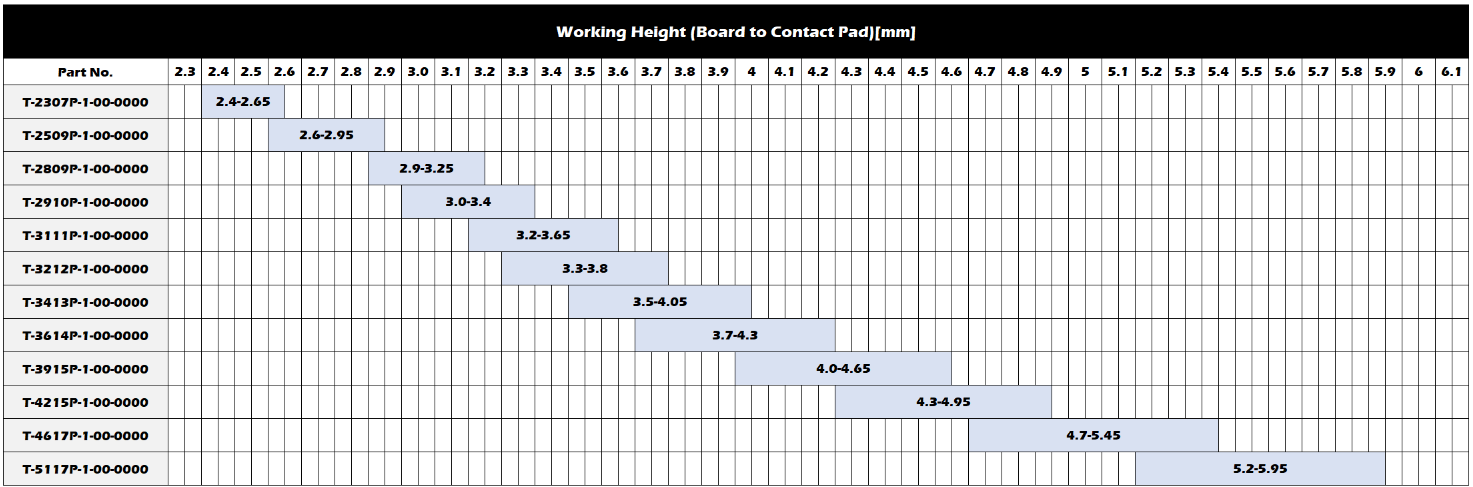

Working Range(Reference)3.2〜3.65 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08 NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Thin Plating Series

Working Range(Reference)

Working Range(Reference)
