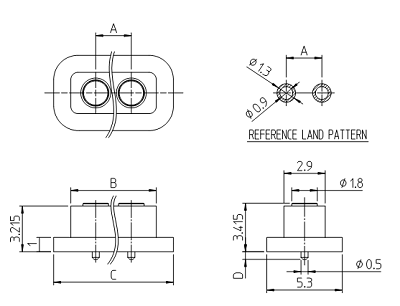

Product image
| Technology | Water Proof | A | 20 |
|---|---|---|---|
| B | 23.5 | C | 25.9 |
| D | 0.55 | Working Height | 3.415 mm |
| Plug/Rece(Male/Female) | Female | Row | Single |
| Boss | W/O | Number of Pins | 9 |
| Pitch | 2.5 mm | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃~＋85℃ | Soldering Method | Through Hole |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 1,500pcs |
Note
Shape to be used only as a reference and may be subject to change.
