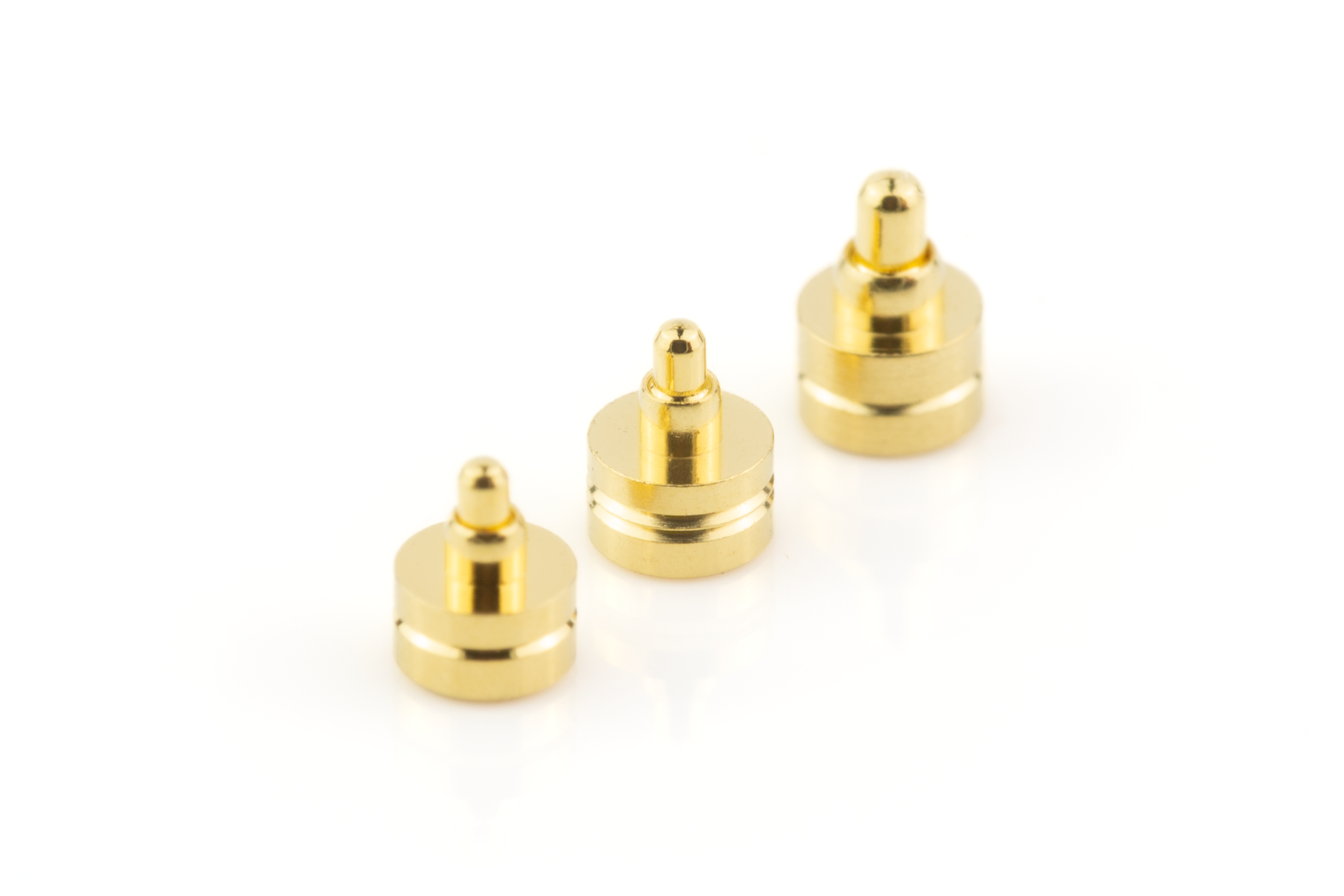

Product image
| Technology | N/A | A | 1.6 |
|---|---|---|---|
| B | 0.4 | C | 0.9 |
| D | 1.7 | E | 0.3 |
| Working Height | 1.7 mm | Working Range(Reference) | 1.7〜1.8 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 1 |
| Pitch | Other | Spring Force | 0.5 N |
| Rated Current | 0.5A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 250mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 5,000 times | Soldering Method | SMD_Vertical |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 2,500pcs |
Note
Shape to be used only as a reference and may be subject to change.

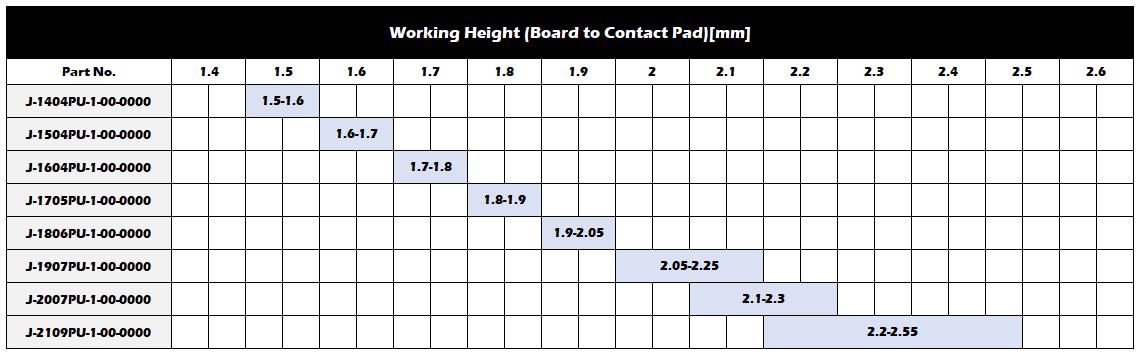

Working Range(Reference)
