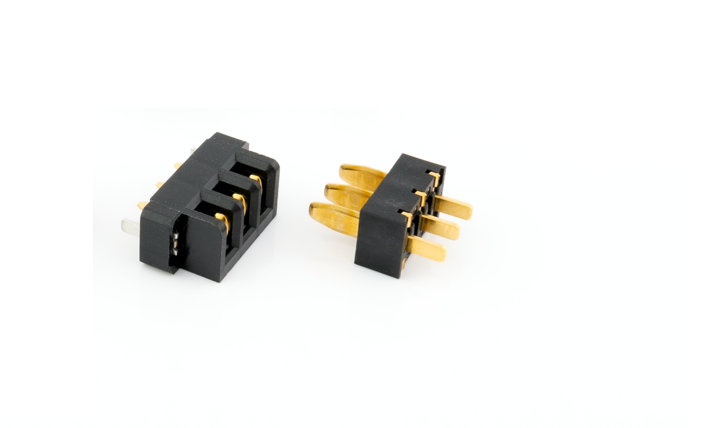

Product image

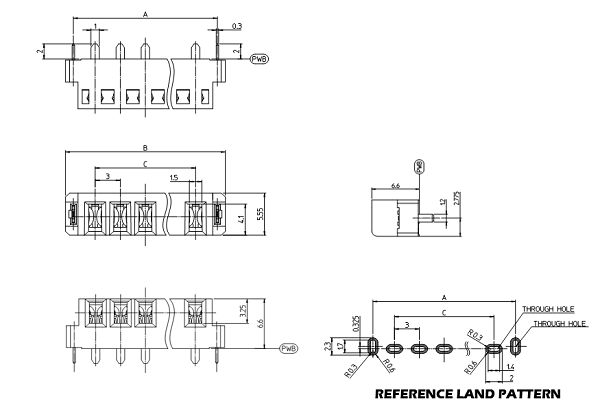

| Technology | N/A | A | 11.2 |
|---|---|---|---|
| B | 13.1 | C | 6 |
| Plug/Rece(Male/Female) | Rece | Row | Single |
| Boss | W/O | Number of Pins | 3 |
| Pitch | 3.0 mm | Rated Current | 3A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 30mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 2,000times |
| Floating Amount | ±0.5mm | Soldering Method | Through Hole |
| Compatible Product | TBP-4725F-3-30-0000 | CAP | W/O |
