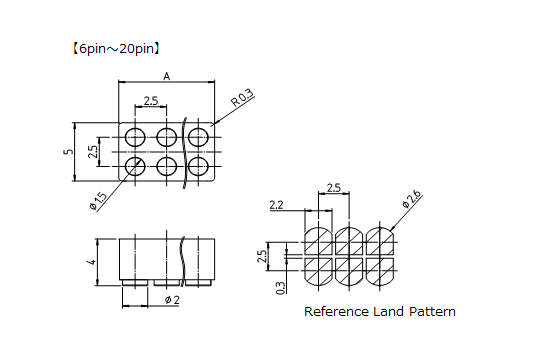

Product image
| Technology | N/A | A | 7.6 |
|---|---|---|---|
| Working Height | 4.0 mm | Plug/Rece(Male/Female) | Female |
| Row | Double | Boss | W/O |
| Number of Pins | 6 | Pitch | 2.5 mm |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | - | Soldering Method | SMD_Vertical |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 400pcs |
