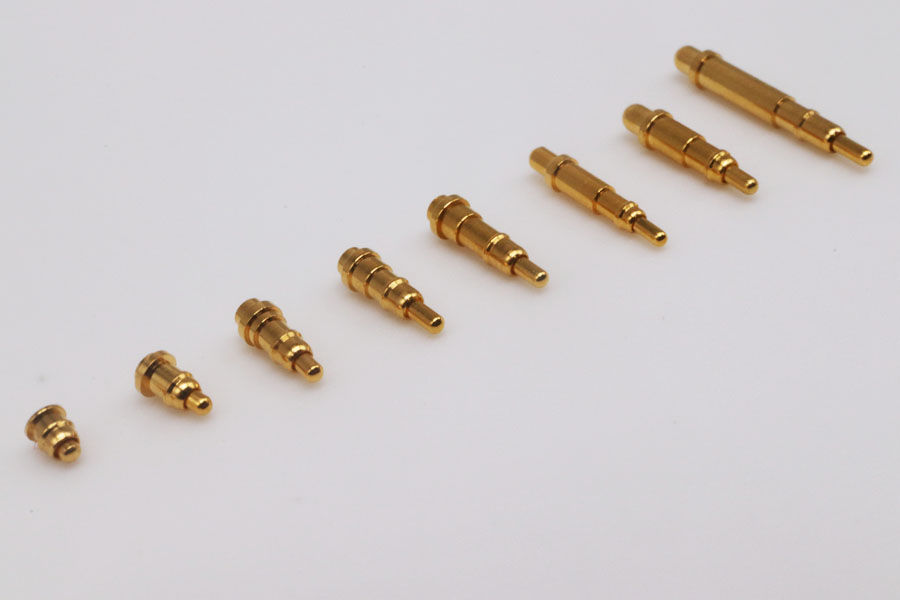

Product image

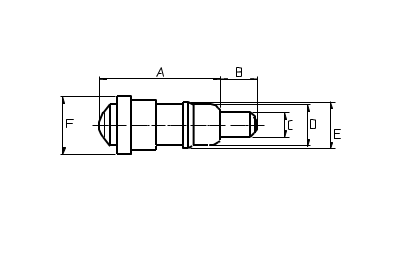

| Technology | N/A | A | 3.7 |
|---|---|---|---|
| B | 1.2 | C | 0.9 |
| D | 1.5 | E | 1.7 |
| F | 2.1 | Working Range(Reference) | 3.9〜4.5 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 1 |
| Pitch | Other | Spring Force | 0.4N MIN〜1.1N MAX |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 100mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 5,000 times | Soldering Method | Floating |
| CAP | W/O | Packaging | Bulk |
| Packaging Quantity | 5,000pcs |
Note

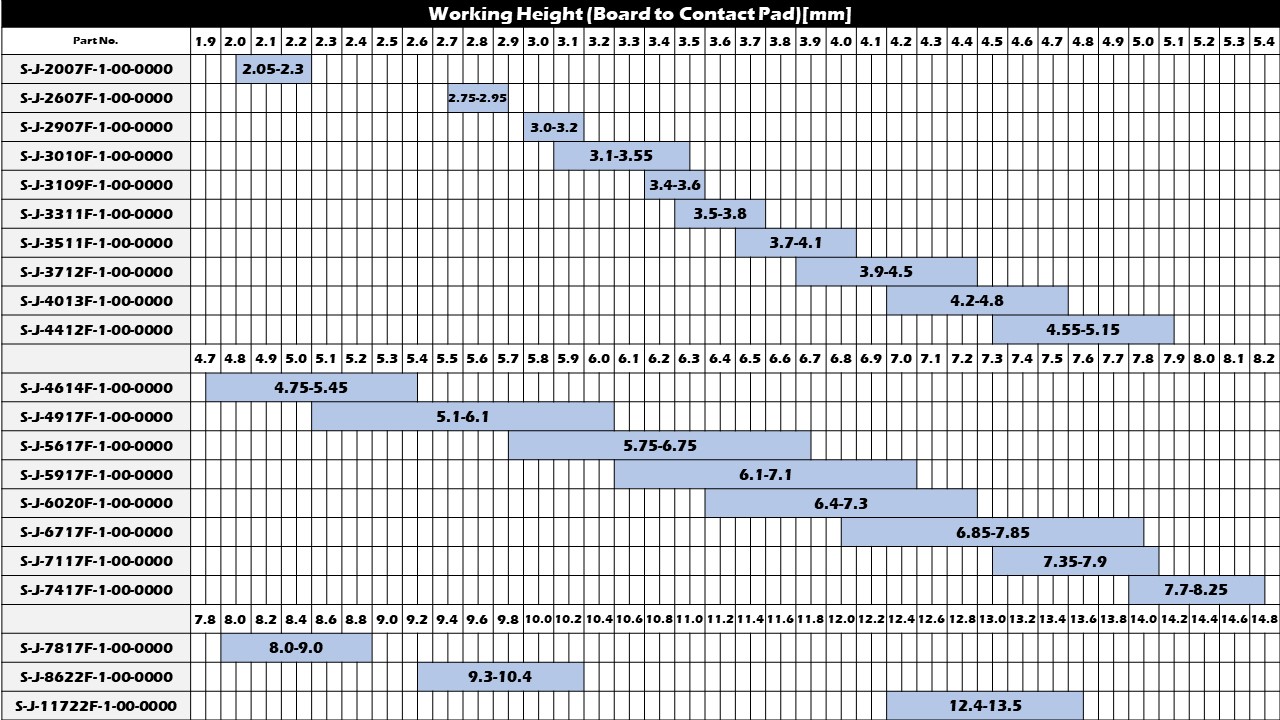

Working Range(Reference)
