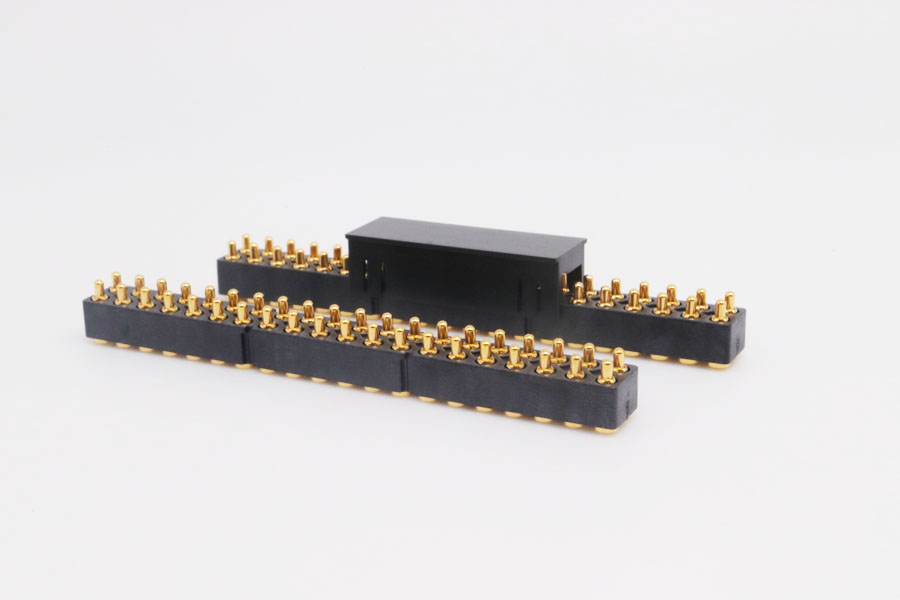

Product image
Pogo Pin Connectors_Double Row_40Pin_2.54mm Pitch_SMD Vertical Series

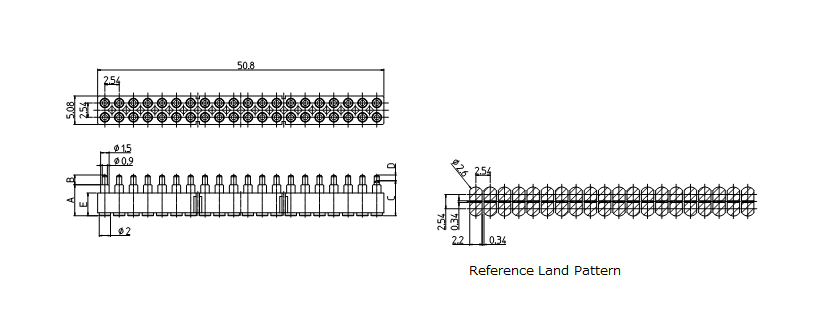

| Technology | N/A | A | 4.6 |
|---|---|---|---|
| B | 1.7 | C | 5.2 |
| D | 1.1 | E | 4 |
| F | 0 | Working Height | 5.2 mm |
| Plug/Rece(Male/Female) | Male | Row | Double |
| Boss | W/O | Number of Pins | 40 |
| Pitch | 2.54 mm | Spring Force | 0.6 N |
| Rated Current | 1A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 100mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
| CAP | W | Packaging | T&R |
| Packaging Quantity | 500pcs |
Note

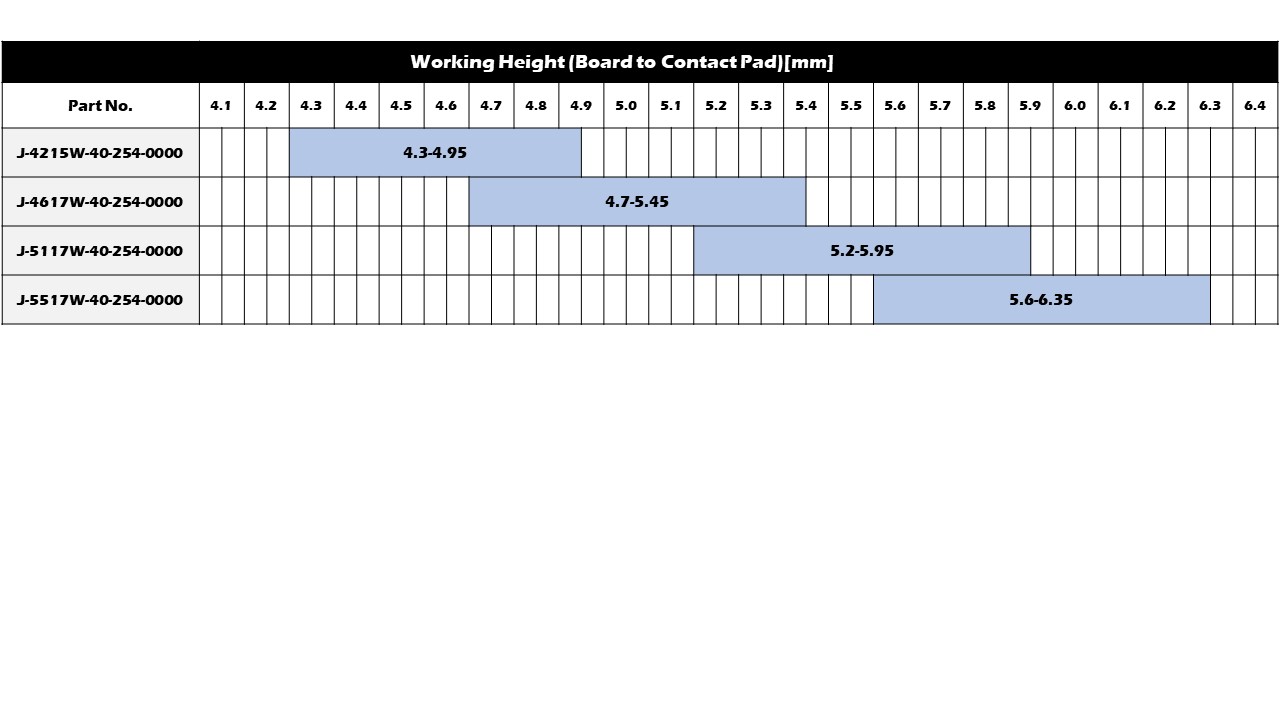

Working Range(Reference)
