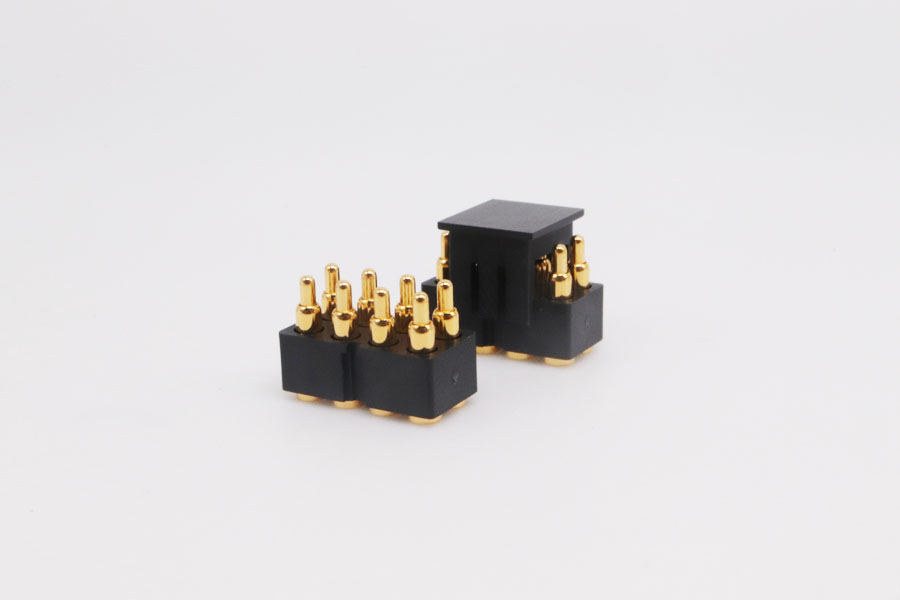

Product image
Pogo Pin Connectors_Double Row_8Pin_2.5mm Pitch_SMD Vertical Series

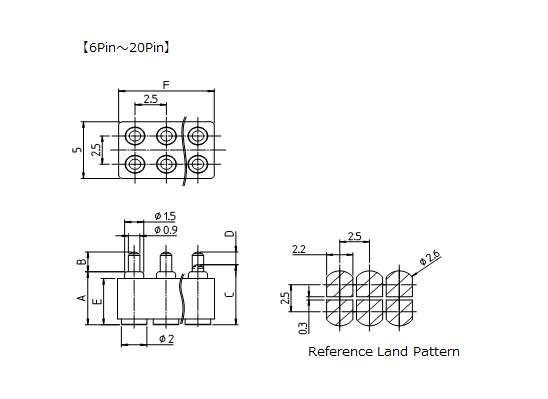

| Technology | N/A | A | 5.1 |
|---|---|---|---|
| B | 1.7 | C | 5.7 |
| D | 1.1 | E | 4 |
| F | 10.1 | Working Height | 5.7 mm |
| Working Range(Reference) | 5.2〜5.95 mm | Plug/Rece(Male/Female) | Male |
| Row | Double | Boss | W/O |
| Number of Pins | 8 | Pitch | 2.5 mm |
| Spring Force | 1.08 N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | Compatible Product | J-4000W-8-25-0000 |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 400pcs |
Note

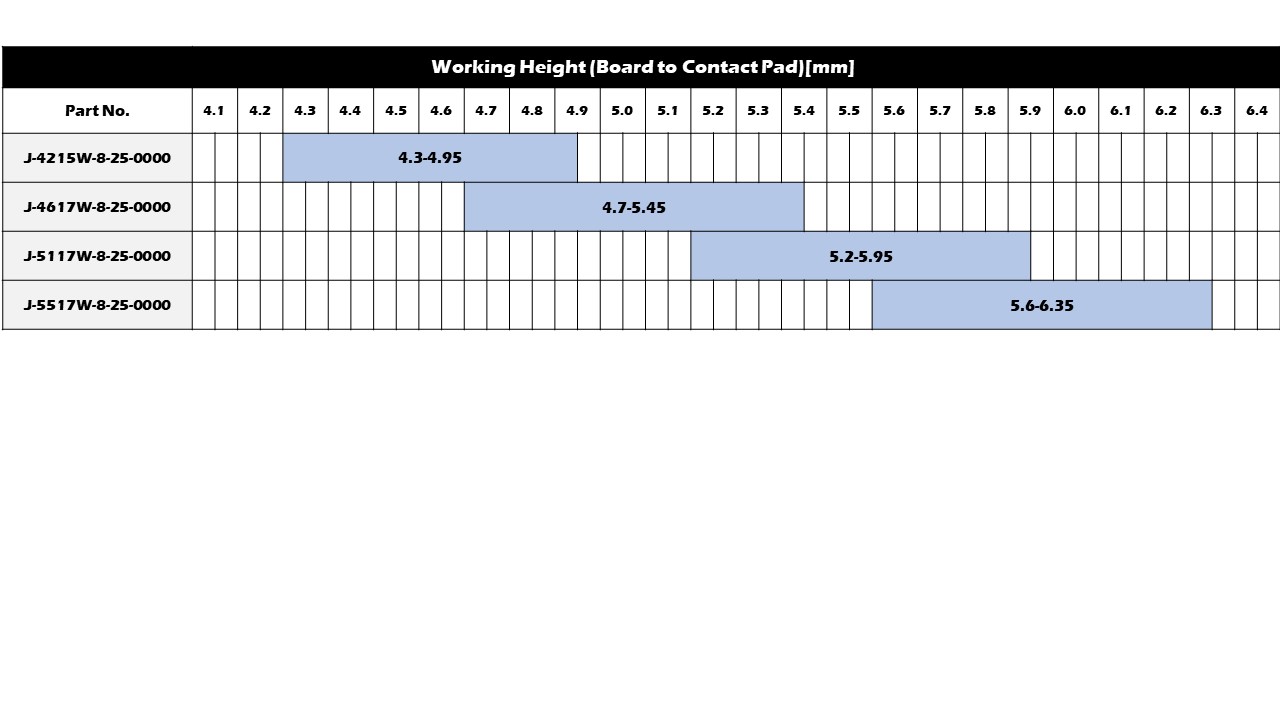

Working Range(Reference)
