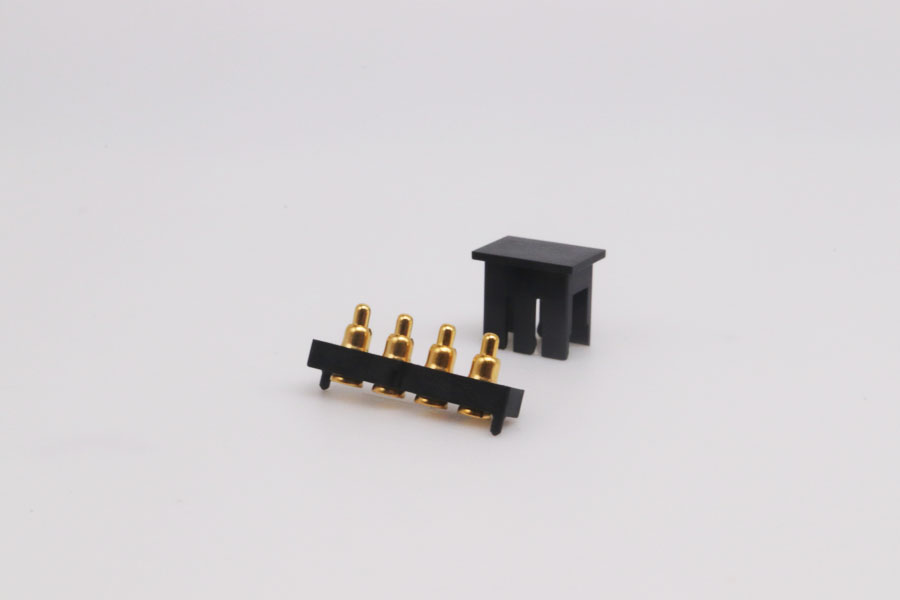

Product image

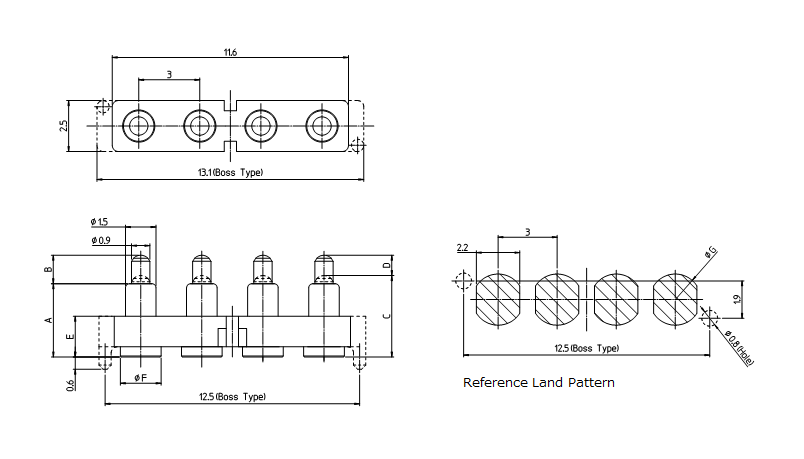

| Technology | N/A | A | 2.5 |
|---|---|---|---|
| B | 0.9 | C | 2.8 |
| D | 0.6 | E | 2 |
| F | 1.8 | G | 2.4 |
| Working Height | 2.8 mm | Working Range(Reference) | 2.6〜2.95 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W | Number of Pins | 4 |
| Pitch | 3.0 mm | Spring Force | 0.9N |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 1,000pcs |
Note
Working Range(Reference)
