J-2910H-4-25-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

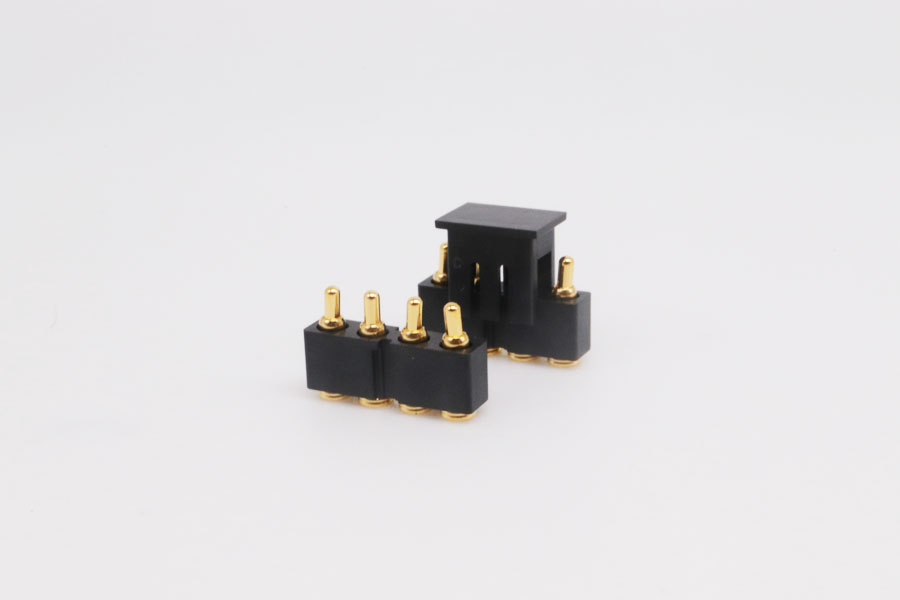

J-2910H-4-25-0000Product image

Pogo Pin Connectors_4Pin_2.5mm Pitch_SMD Vertical Series

J-2910H-4-25-0000

TechnologyN/AA2.9
B1C3.2
D0.7E2
F1.8G2.4
Working Height3.2 mmWorking Range(Reference)3.0〜3.4 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins4
Pitch2.5 mmSpring Force1.08 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
Compatible ProductJ-4000H-4-25-0000CAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Working Range(Reference)

Working Range(Reference)

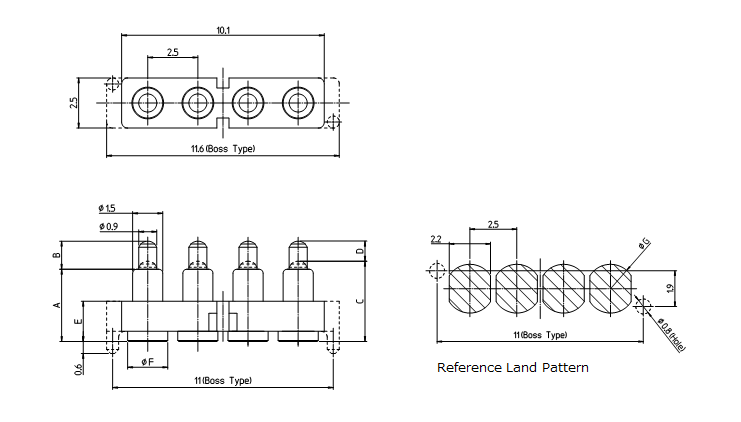

Mating Pad
