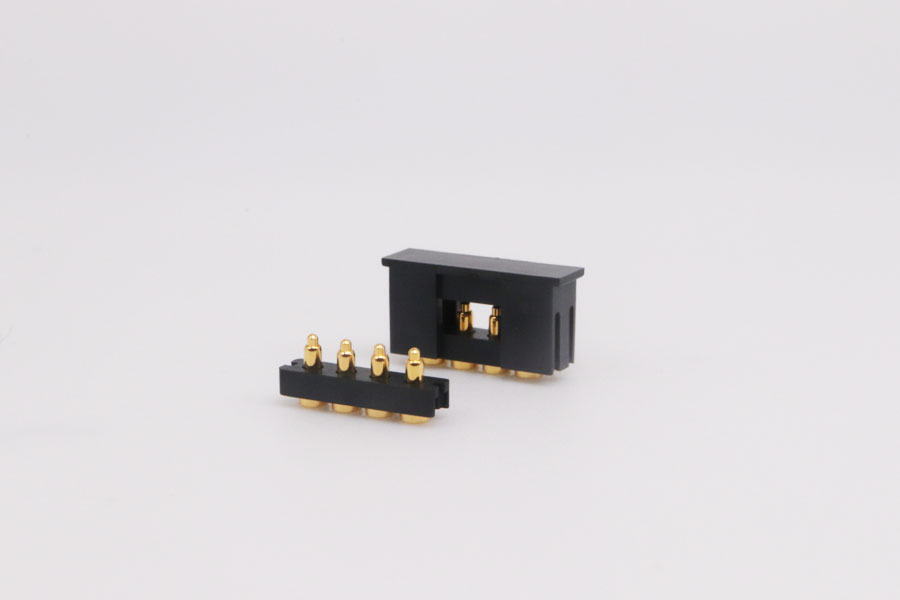

Product image

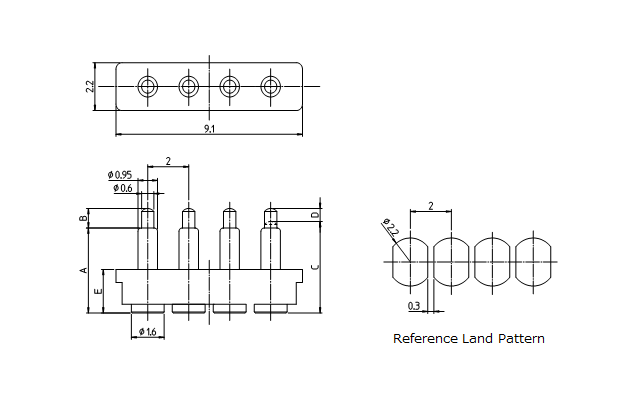

Technology | N/A | A | 3.7 |
---|---|---|---|
B | 0.9 | C | 4 |
D | 0.6 | E | 2 |

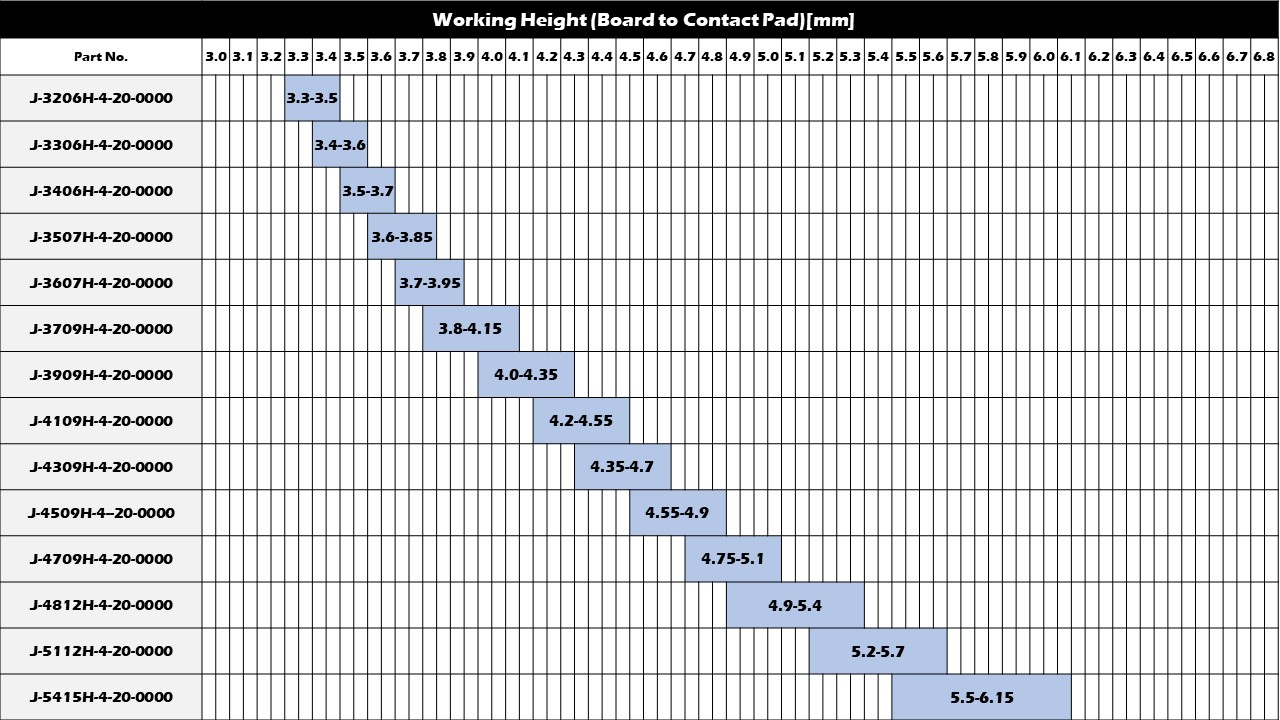

Working Height | 4.0 mm | Working Range(Reference) | 3.8〜4.15 mm |
Plug/Rece(Male/Female) | Male | Row | Single |
Boss | W/O | Number of Pins | 4 |
Pitch | 2.0 mm | Spring Force | 1.0 N |
Rated Current | 1A | Rated Voltage | AC/DC 12V |
Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜+85℃ |
Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
CAP | W | Packaging | Tape&Reel |
Packaging Quantity | 1,000pcs |
