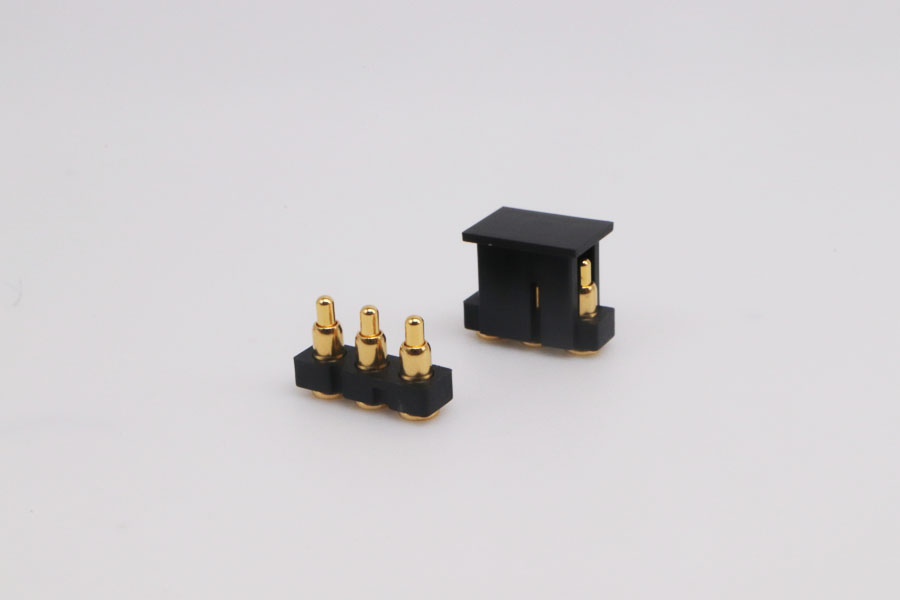

Product image
Pogo Pin Connectors_3Pin_2.5mm Pitch_SMD Vertical Series

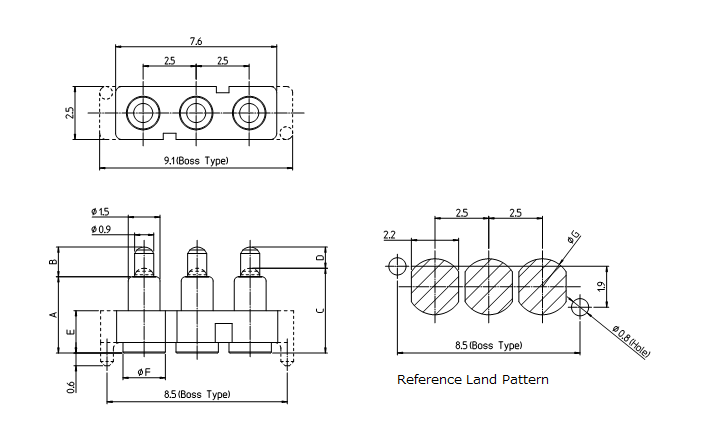

| Technology | N/A | A | 3.1 |
|---|---|---|---|
| B | 1.1 | C | 3.4 |
| D | 0.8 | E | 2 |
| F | 1.8 | G | 2.4 |
| Working Height | 3.4 mm | Working Range(Reference) | 3.2〜3.65 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 3 |
| Pitch | 2.5 mm | Spring Force | 1.08 N |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
| Compatible Product | J-4000H-3-25-0000 | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 1,000pcs |
Note
Working Range(Reference)
