FAQ

TWO-PIECE CONNECTOR
Product Guidelines

Is there any recommendation on how to fit plugs and receptacles?

Please do not use similar products from other manufacturers as mating counterpart.
Plugs should be inserted under an angle of 5° or less.

What is the recommended mating orientation for two-piece connectors?

Standard products support both vertical and horizontal fitting.

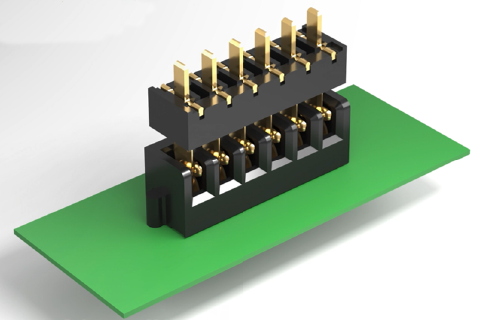

Vertical mating

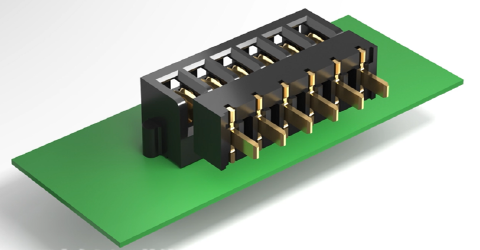

Horizontal mating

What mounting methods are supported?

It depends on the product, but generally reflow, flow, and hand soldering are supported.
