J-3614T-1-00-0000(Through Hole)

SPRING CONNECTOR™/Pogo Pins
Through Hole Connector

RoHS

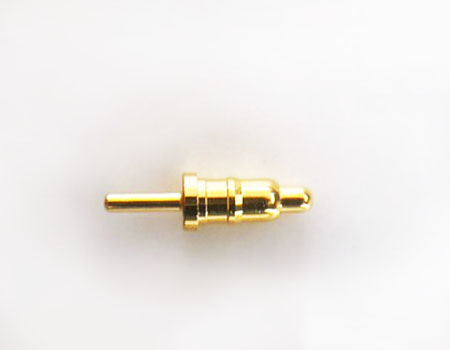

J-3614T-1-00-0000(Through Hole)Product image

Pogo Pin Connectors_1Pin_Through Hole Series

J-3614T-1-00-0000(Through Hole)

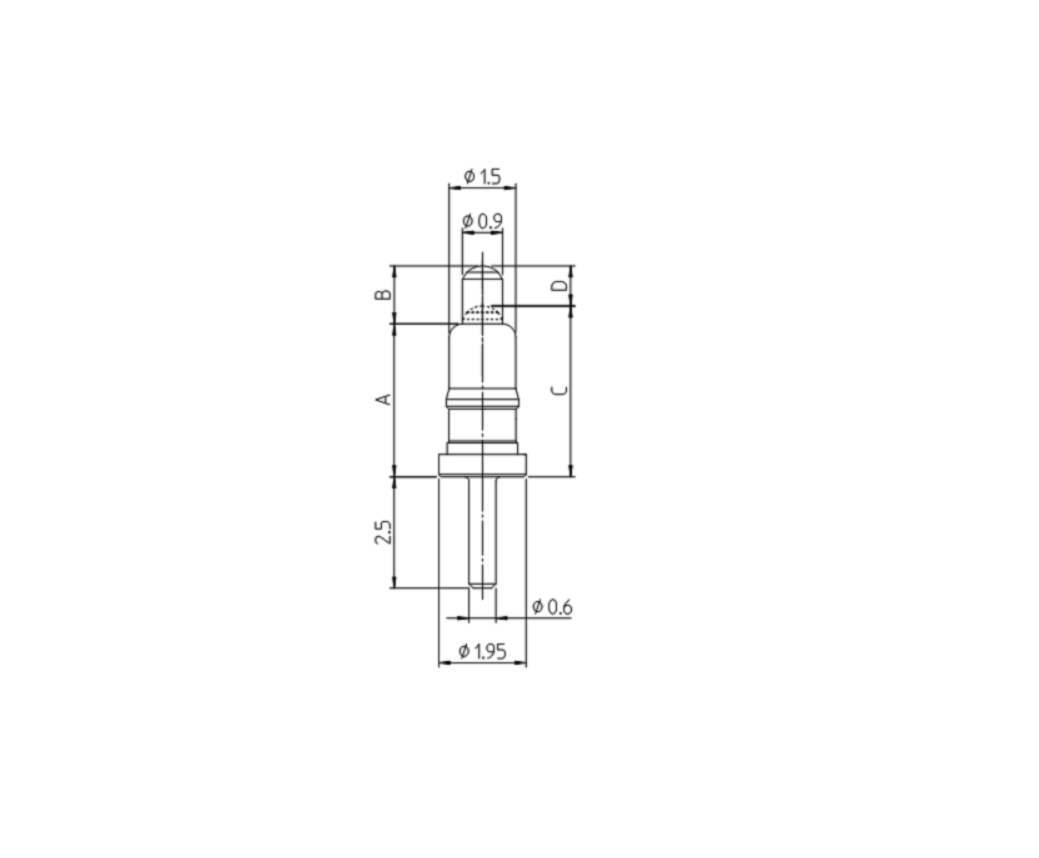

TechnologyN/AA3.6
B1.4C4
D1Working Height4.0mm
Working Range(Reference)3.7〜4.3 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range‐40℃~85℃Cycle Durability20,000 times
Soldering MethodThrough HoleCAPW/O
PackagingBulkPackaging Quantity500pcs
Note

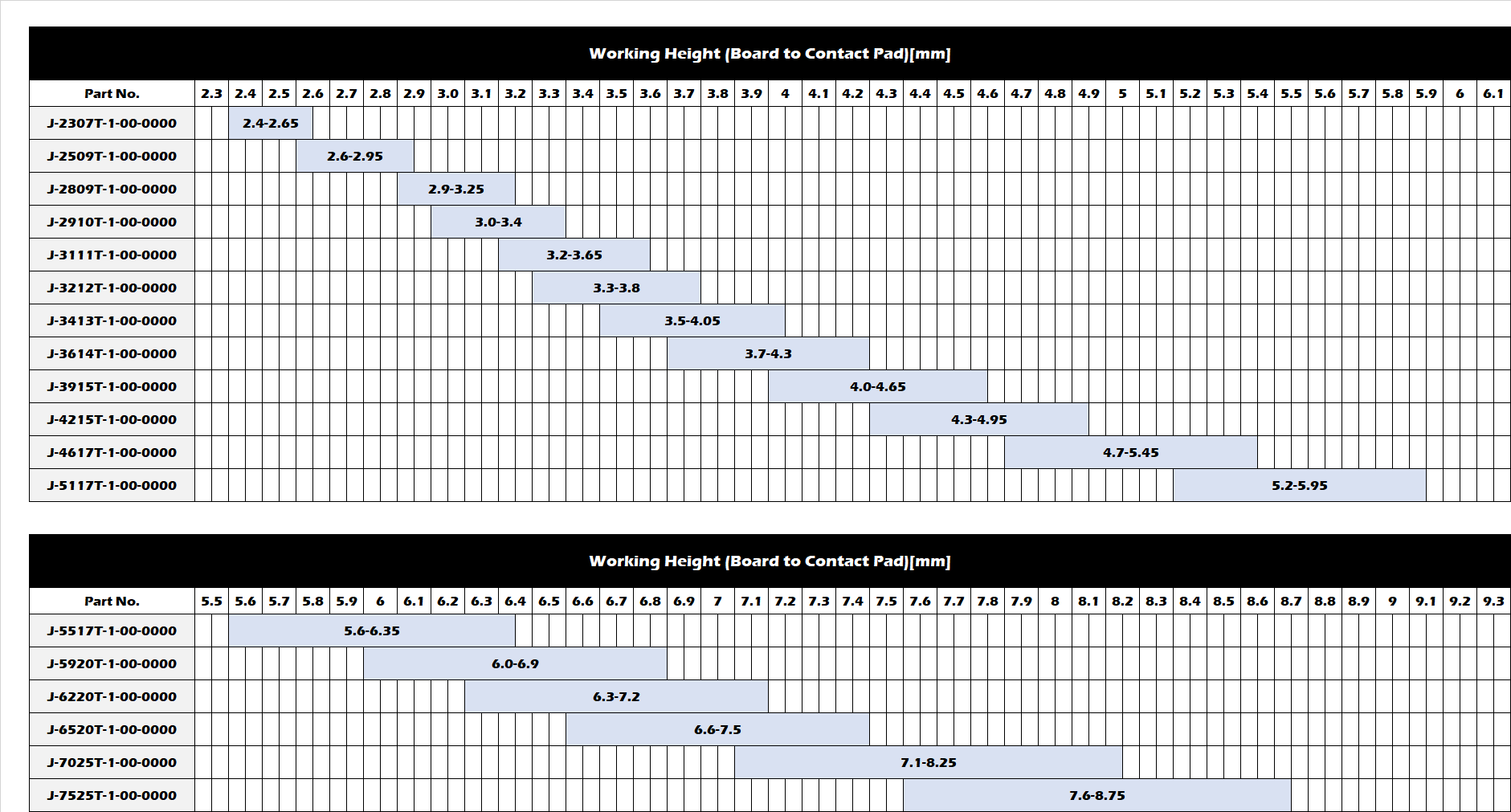

Working Range(Reference)

Working Range(Reference)
